Best Fire Extinguisher for Jeep JK: Mounting & Selection Guide

Vehicle fires happen faster than most people realize. A fuel line leak, electrical short, or overheated component can turn your JK into an inferno in under 60 seconds. In remote trail locations, help isn’t coming—you’re the first and only responder. A properly mounted fire extinguisher is cheap insurance against catastrophic loss.

This guide covers which extinguisher to choose, where to mount it, and how to use it effectively when seconds count.

Why JKs Need Fire Extinguishers

Modified Jeeps face elevated fire risks compared to stock vehicles:

• Aftermarket electrical: Auxiliary lights, winches, and accessories increase wiring complexity and short-circuit potential
• Engine modifications: Higher operating temperatures, additional fluids, modified fuel systems
• Trail damage: Impacts can rupture fuel lines, damage wiring, or crack radiator hoses
• Brush contact: Dry grass and debris can ignite on hot exhaust components

Most vehicle fires are survivable if caught within the first 30-60 seconds. Beyond that, fire spreads exponentially and the vehicle becomes unrecoverable. Having an extinguisher within arm’s reach means you can act immediately.

Fire Extinguisher Types Explained

ABC Dry Chemical (Most Common)

The most versatile option for vehicles. “ABC” indicates the fire classes it handles:

• Class A: Ordinary combustibles (wood, paper, fabric)
• Class B: Flammable liquids (gasoline, oil, grease)
• Class C: Electrical fires

Dry chemical extinguishers work by interrupting the chemical reaction of fire. They’re effective, affordable, and widely available. The downside: the powder is corrosive and messy, potentially causing additional damage to electronics and engine components.

Clean Agent (Halotron)

Clean agent extinguishers use gases that leave no residue. They’re ideal for electronics and engine compartments where powder contamination causes secondary damage. However, they cost 3-4x more than dry chemical and have shorter discharge times.

CO2 Extinguishers

Carbon dioxide extinguishers work by displacing oxygen. They leave no residue and work well on electrical fires, but they’re less effective on Class A fires and the cylinders are heavier. Rarely the best choice for vehicle use.

For JK owners: ABC dry chemical extinguishers offer the best combination of effectiveness, cost, and versatility. Clean agent is worth considering if you’re willing to pay the premium for residue-free suppression.

Best Fire Extinguishers for Jeep JK

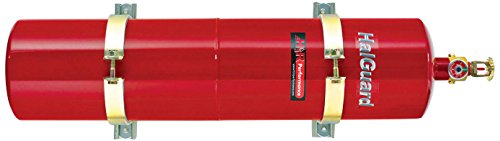

1. H3R Performance HG250R HalGuard - Best Overall

The HalGuard represents the premium choice for vehicle fire protection. The clean agent formula leaves no residue—critical when fighting engine compartment fires where powder contamination can cause thousands in additional damage. The chrome-look finish resists corrosion in the harsh JK interior environment.

Why we recommend it:

• Clean agent won’t damage electronics or engine components
• Compact size fits JK mounting locations
• Premium construction built for automotive use
• Metal handle and pin for durability

Best for: JK owners who want the best fire protection without worrying about cleanup or secondary damage.

2. First Alert AUTO5 - Best Value

For budget-conscious JK owners, the First Alert AUTO5 delivers legitimate fire suppression capability at an accessible price. The included mounting bracket fits standard vehicle mounting points, and the compact size tucks into tight spaces.

Value highlights:

• Extremely affordable
• Includes mounting bracket
• Adequate for most vehicle fires
• Easy to replace when expired

Limitations: Dry chemical residue requires cleanup and can damage electronics. The plastic components aren’t as durable as premium units.

Best for: Budget builds and owners who want basic fire protection without significant investment.

3. Amerex B417T - Professional Grade

Amerex is the brand you’ll find in fire stations and commercial applications. The B417T brings that professional quality to your JK. The all-metal construction handles the vibration and temperature extremes of off-road use, and the higher fire rating provides more firefighting capability.

Professional features:

• All-metal valve and handle construction
• Higher fire rating than consumer units
• Rechargeable (can be refilled, not just replaced)
• Proven commercial-grade reliability

Best for: Serious off-roaders who want fire department-quality equipment and don’t mind the dry chemical tradeoffs.

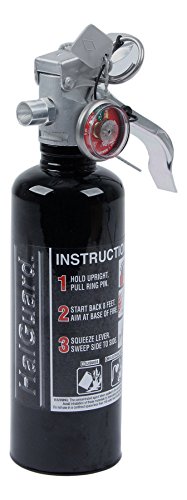

4. H3R Performance MX250R MaxOut - Dry Chemical Premium

H3R’s MaxOut line brings premium construction to dry chemical extinguishers. The chrome finish, metal components, and superior build quality outclass typical consumer units while maintaining the affordability of dry chemical technology.

Premium dry chemical advantages:

• Metal construction throughout
• Attractive chrome finish
• Better vibration resistance than consumer units
• Includes vehicle bracket

Best for: Owners who want premium construction but prefer dry chemical effectiveness over clean agent convenience.

Fire Extinguisher Mounting Options

Roll Bar Mounts

The most popular JK mounting location. Roll bar mounts keep the extinguisher accessible from the driver’s seat while securing it against trail impacts. Options include:

Center Console Mounts

Some owners prefer center console mounting for maximum accessibility. Quick-release brackets allow grab-and-go deployment.

Under-Seat Mounting

Keeps the extinguisher hidden while remaining accessible. Works well for JKs with limited interior mounting options.

Tailgate Mounting

External mounting on tailgate-mounted carriers frees interior space but increases deployment time in emergencies.

Recommendation: Mount within arm’s reach of the driver’s seat. Roll bar mounting on the passenger side B-pillar area provides the best balance of accessibility and security.

Proper Fire Extinguisher Usage

The PASS Technique

When using any fire extinguisher, remember PASS:

P - Pull the pin. Break the tamper seal and remove the pin.

A - Aim at the base of the fire, not the flames.

S - Squeeze the handle to release the extinguishing agent.

S - Sweep from side to side at the base of the fire until it’s out.

Vehicle Fire Procedure

1. Stop immediately when you smell smoke or see flames. Pull over safely if on the road.

2. Turn off the engine. This stops fuel flow and electrical power to most systems.

3. Get everyone out of the vehicle and to a safe distance (at least 100 feet).

4. Assess the situation. If flames are visible under the hood, do NOT open the hood fully—this adds oxygen and can cause flashover.

5. For engine fires: Partially lift the hood and direct extinguisher through the gap, sweeping across the fire’s base.

6. For interior fires: Open the door slightly and direct extinguisher at the seat of the fire.

7. If the fire is too large (flames above the hood line) or you’ve emptied your extinguisher without control, retreat and call 911.

When NOT to Fight a Fire

• Fire is already too large to control
• You don’t have a clear escape route
• Fire involves fuel tank or fuel lines (extreme explosion risk)
• Smoke prevents you from seeing the fire’s source
• You’ve used the extinguisher without effect

Your life is worth more than any vehicle. When in doubt, retreat.

Maintenance and Inspection

Monthly Checks

• Verify gauge shows proper pressure (green zone)
• Ensure pin and tamper seal are intact
• Check for visible damage, corrosion, or leaks
• Confirm mount is secure

Annual Service

• Professional inspection or replacement
• Dry chemical extinguishers should be replaced every 5-6 years
• Clean agent units may last 10+ years with proper maintenance

After Any Discharge

• Replace or professionally recharge immediately
• Even partial discharge requires recharge—you can’t trust partially used extinguishers

Size Considerations

2 lb units: Minimum viable for vehicle use. Adequate for small fires but limited discharge time (~10 seconds).

2.5 lb units: The sweet spot for JKs. Longer discharge time (~12-15 seconds) while remaining compact enough for interior mounting.

5 lb units: Maximum capability but bulky. Consider if you frequently travel in groups or remote areas.

For most JK owners, a 2.5 lb unit provides the best balance of firefighting capability and practical size.

Legal Requirements

Some jurisdictions require fire extinguishers in vehicles, particularly for:

• Commercial vehicles
• Vehicles carrying flammable materials
• Off-road trail permits (some parks require them)

Check local regulations, especially if you’re wheeling on public lands that require permits.

Our Recommendations

Best overall: H3R HalGuard for clean agent suppression without residue concerns. The premium price pays for peace of mind and reduced secondary damage.

Best value: First Alert AUTO5 delivers legitimate fire protection at minimal cost. Perfect for budget builds or as a backup extinguisher.

Professional grade: Amerex B417T if you want fire department-quality equipment and don’t mind dry chemical residue.

Every JK should carry a fire extinguisher mounted within arm’s reach. It’s cheap insurance against total loss, and you might save someone else’s vehicle—or life—on the trail.

Complementary Upgrades

Explore these related modifications for your Jeep JK:

• JK Armor & Protection Guide — your complete starting point
• Best JK First Aid Kit — pair fire safety with medical preparedness
• JK Recovery Gear Checklist — part of every complete trail safety kit
• JK Trail Tool Kit — essential tools for every trail ride
• Best JK Grab Handles — mounting near your safety gear
• Best JK Roll Cage Storage — roll bar mounting solutions

Fire Extinguisher Comparison

Model	Type	Size	Rating	Price	Best For
H3R MaxOut	Clean Agent	2.0 lb	5B:C	$60-80	Optimal performance
Element E50	Clean Agent	2.0 lb	5B:C	$50-70	Budget option
First Alert AUTO5	Dry Powder	5.0 lb	10B:C	$40-60	Maximum capacity
Kidde FA110	Dry Powder	5.0 lb	10B:C	$35-50	Most affordable

H3R MaxOut Clean Agent

Pros

• No residue left behind
• Won’t damage electronics
• Most effective for engine fires
• Professional grade

Cons

• Higher cost
• Smaller capacity
• Less common in stores

Kidde FA110 Dry Powder

Pros

• Lowest price point
• Maximum 5 lb capacity
• Effective on all fire types
• Easy to find

Cons

• Leaves powder residue
• Can damage electronics
• Harder to clean up

Related Guides

Explore more JK upgrade guides to complement your build:

• Best JK Front Bumpers — front bumper upgrade options
• Best JK Rear Bumpers — rear bumper choices
• Best JK Skid Plates — underbody protection options
• Rock Sliders vs Rocker Guards — side protection comparison
• Best JK Fender Flares — fender flare options for larger tires
• Best Winches for JK — winch selection for recovery

Frequently Asked Questions

What size fire extinguisher do I need for my JK?

A 2.5 lb unit is ideal for most JKs—adequate firefighting capability while compact enough for interior mounting. 2 lb units work but have limited discharge time.

Where should I mount my fire extinguisher?

Within arm’s reach of the driver’s seat, typically on the roll bar at the B-pillar. The goal is immediate access without leaving the vehicle.

How often do fire extinguishers need to be replaced?

Dry chemical units should be replaced every 5-6 years. Clean agent units last longer (up to 12 years) but should be inspected annually. Replace immediately after any discharge.

Is a clean agent extinguisher worth the extra cost?

For JKs with extensive electrical modifications or expensive engine components, yes. The lack of residue prevents secondary damage. For basic builds, ABC dry chemical is more cost-effective.

Can I use a household fire extinguisher in my JK?

Kitchen extinguishers (Class K) aren’t suitable for vehicle fires. Ensure your extinguisher is rated for B and C class fires at minimum.

Do I need a fire extinguisher if I have a winch?

Winch fires (from electrical shorts or overheating) are actually common. Having an extinguisher becomes more important with additional electrical accessories, not less.
