Best LED Headlights for JK Wrangler: Brightest & DOT Approved

Upgrading to LED headlights is one of the most impactful modifications you can make to your JK Wrangler. The stock halogen sealed beams produce roughly 700-1,000 lumens - barely adequate for modern traffic and genuinely dangerous on dark trails. The best JK LED headlights deliver 4-6 times more light with superior beam patterns, transforming your nighttime driving experience.

This guide covers everything you need to know about choosing the best LED headlights for your JK Wrangler, from premium options like JW Speaker down to budget-friendly alternatives. We’ll explain DOT compliance, installation requirements, and help you avoid the cheap Amazon lights that blind oncoming traffic while barely illuminating the road ahead.

Why Upgrade to LED Headlights on Your JK?

The JK Wrangler came from the factory with 7-inch round sealed beam headlights - a design dating back decades. While functional, these halogens fall far short of modern lighting technology.

Stock Halogen vs. LED Headlight Comparison

Specification	Stock Halogen	Quality LED
Low beam output	700-1,000 lumens	3,000-4,500 lumens
High beam output	1,200-1,500 lumens	4,000-6,000 lumens
Color temperature	3,200K (yellowish)	5,000-6,500K (daylight white)
Lifespan	500-1,000 hours	30,000-50,000 hours
Power consumption	55W/65W	30W-45W
Heat generation	High (bulb surface)	Moderate (rear heatsink)

Benefits of LED Headlight Upgrades

Dramatically improved visibility: Quality LED headlights illuminate the road 3-4 times farther than halogens, with wider beam spread for better peripheral vision. You’ll see obstacles, animals, and road hazards much sooner.

Reduced eye fatigue: The daylight-white color temperature of LEDs (5,000-6,000K) is easier on your eyes during extended night driving compared to the yellowish halogen light.

Longer lifespan: LED headlights typically last the lifetime of your vehicle. You’ll never replace another headlight bulb.

Lower power draw: Despite producing more light, LEDs use less electrical power than halogens, reducing strain on your charging system - especially important if you’ve added other electrical accessories.

Modern appearance: Let’s be honest - LED headlights look better. The bright, white light and available halo DRL options modernize the JK’s front end.

Understanding 7 Inch LED Headlight Specifications

The JK uses standard 7-inch round headlights, giving you access to a huge aftermarket selection. However, not all 7 inch LED headlights are created equal.

Key Specifications to Evaluate

Lumens (Light Output)

Lumens measure total light output. For JK headlight upgrades, look for:

• Low beam: 3,000-4,500 lumens
• High beam: 4,000-6,000 lumens

Higher numbers aren’t always better. A 10,000-lumen headlight with poor optics will have worse real-world performance than a 3,500-lumen light with properly designed reflectors.

Beam Pattern

This is where cheap LED headlights fail catastrophically. A proper low beam pattern has:

• Sharp horizontal cutoff to prevent blinding oncoming traffic
• Slight upward angle on the passenger side to illuminate road signs
• Wide, even light distribution without dark spots

Poor beam patterns scatter light everywhere - directly into oncoming drivers’ eyes while leaving dark spots on the road where you actually need to see.

Color Temperature

Temperature	Appearance	Best For
4,300K	Warm white/slight yellow	Poor weather visibility
5,000K	Neutral white	General driving
6,000K	Cool white	Clear conditions, modern look
6,500K+	Blue-white	Appearance only, reduced visibility

Our recommendation: 5,000-6,000K provides the best balance of visibility and modern appearance. Avoid anything above 6,500K - it looks blue and actually reduces visibility.

DOT/SAE Certification

DOT (Department of Transportation) and SAE (Society of Automotive Engineers) certification means the headlight has been tested and approved for on-road use in the United States. DOT approved headlights must meet specific standards for:

• Beam pattern and cutoff
• Light intensity and distribution
• Glare limits for oncoming traffic

Always choose DOT-certified headlights for road use. Non-DOT lights may be illegal and are often dangerous due to improper beam patterns.

Halo and DRL Options

Many JK LED headlights include integrated halo rings and daytime running lights (DRLs). These features add style and visibility but require consideration:

Halo styles:

• Single halo (surrounds main reflector)
• Double halo (inner and outer rings)
• RGB halo (color-changing, often app-controlled)

DRL functionality:

• White DRL (most common)
• Amber turn signal integration
• Sequential turn signals

Wiring considerations: Halo and DRL features require additional wiring beyond the standard H13 headlight connection. Most quality units include wiring instructions, but expect 30-60 minutes of extra installation time.

Legal note: While halos and DRLs are generally legal, RGB/color-changing halos that display blue or red may violate laws prohibiting colors reserved for emergency vehicles. Check your local regulations.

Best JK LED Headlights: Top Picks for 2024

We’ve organized our recommendations into premium, mid-range, and budget categories. Your choice depends on how much you drive at night and your budget.

Premium: Best Performance LED Headlights

These headlights represent the pinnacle of 7 inch LED headlight technology with exceptional beam patterns, build quality, and warranty support.

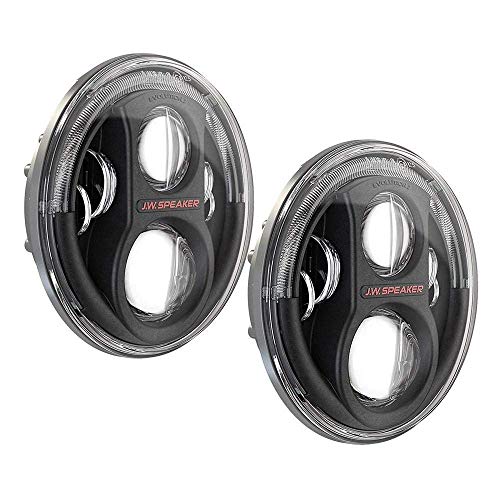

JW Speaker 8700 Evolution J2

JW Speaker sets the standard for premium LED headlights. The 8700 Evolution J2 is their flagship JK-specific model.

Specification	Value
Low beam	3,600 lumens
High beam	4,600 lumens
Color temperature	5,000K
DOT approved	Yes
Warranty	5 years
Price	$600-700/pair

Standout features:

• Industry-leading beam pattern with sharp cutoff
• Integrated heated lens prevents ice buildup
• Plug-and-play for JK (includes H13 adapter)
• Made in USA

Why choose JW Speaker: Unmatched beam pattern quality. JW Speaker developed LED headlights for military and commercial vehicles before entering the consumer market. Their optics engineering shows in every product. If you do significant night driving, JW Speaker is the benchmark.

Best for: Serious night drivers, overland builds, owners who want the absolute best and are willing to pay for it.

Truck-Lite 27270C

Truck-Lite pioneered LED headlights for the commercial trucking industry and brings that expertise to the Jeep market.

Specification	Value
Low beam	2,800 lumens
High beam	4,200 lumens
Color temperature	5,600K
DOT approved	Yes
Warranty	5 years
Price	$450-550/pair

Standout features:

• Exceptional build quality (designed for semi-trucks)
• Superior vibration resistance
• Clean, simple design
• Excellent warranty support

Why choose Truck-Lite: Truck-Lite headlights are built to survive millions of miles on commercial vehicles. That durability translates perfectly to trail use where vibration and impacts are constant concerns. Slightly less raw output than JW Speaker but with arguably better long-term reliability.

Best for: Owners prioritizing durability, commercial-grade reliability, and proven performance over maximum brightness.

Mid-Range: Best Value LED Headlights

These options deliver 80-90% of premium performance at 50-60% of the cost.

KC HiLiTES Gravity LED Pro

KC HiLiTES has been making off-road lights since 1970. Their Gravity LED Pro headlights bring that experience to the JK headlight market.

Specification	Value
Low beam	3,200 lumens
High beam	4,800 lumens
Color temperature	5,500K
DOT approved	Yes
Warranty	Lifetime
Price	$400-500/pair

Standout features:

• Lifetime warranty (exceptional in this price range)
• Gravity lens technology for precise beam control
• Multiple configurations (with/without halos)
• Direct plug-and-play for JK

Why choose KC HiLiTES: The lifetime warranty makes this an exceptional value. Beam pattern quality approaches premium levels at mid-range pricing. KC’s reputation for off-road lighting excellence extends to their headlight line.

Best for: Value-conscious owners who want premium-level performance with the security of a lifetime warranty.

Morimoto Super7

Morimoto (from The Retrofit Source) built their reputation on HID retrofit kits before entering the LED market. Their Super7 brings retrofit-quality optics to a complete LED headlight.

Specification	Value
Low beam	3,500 lumens
High beam	5,000 lumens
Color temperature	5,500K
DOT approved	Yes
Warranty	5 years
Price	$400-500/pair

Standout features:

• Bi-LED projector design (same technology as modern vehicles)
• Excellent high-beam performance
• Multiple versions (standard, halo, RGB halo)
• Strong enthusiast community support

Why choose Morimoto: The bi-LED projector design delivers exceptional beam patterns that rival premium brands. Morimoto’s enthusiast-focused approach means excellent customer support and detailed installation guides. The projector technology provides a more focused beam than many reflector-based designs.

Best for: Enthusiasts who appreciate projector optics, owners wanting the best mid-range beam pattern, halo seekers.

Budget: Entry-Level LED Headlights

Budget headlights work for owners with light nighttime use. Expect compromises in beam pattern quality and longevity.

Sunpie 7 Inch LED Headlights

Sunpie offers one of the most popular budget JK LED headlight options with reasonable quality for the price.

Specification	Value
Low beam	2,800 lumens (claimed)
High beam	4,200 lumens (claimed)
Color temperature	6,000K
DOT approved	No (DOT markings but not certified)
Warranty	1 year
Price	$80-120/pair

Standout features:

• Very affordable
• Decent build quality for the price
• Multiple halo options available
• Includes H4 to H13 adapter

Why choose Sunpie: If budget is your primary concern and you do limited night driving, Sunpie provides a dramatic improvement over stock halogens at minimal cost. Just understand you’re sacrificing beam pattern precision and long-term reliability.

Limitations: Beam pattern has noticeable glare above the cutoff line. Some oncoming drivers may flash you. Not truly DOT certified despite markings. Longevity is questionable beyond 2-3 years.

Best for: Budget builds, occasional night driving, owners willing to potentially upgrade later.

Xprite 7 Inch LED Headlights

Xprite occupies a similar budget space to Sunpie with slightly different styling options.

Specification	Value
Low beam	3,000 lumens (claimed)
High beam	4,500 lumens (claimed)
Color temperature	6,000K
DOT approved	Claims compliance but not certified
Warranty	2 years
Price	$100-150/pair

Standout features:

• Slightly longer warranty than most budget options
• Wide variety of halo styles
• Decent thermal management
• Includes adapters and wiring

Why choose Xprite: Marginally better build quality than rock-bottom budget options. The 2-year warranty provides some peace of mind. Available with unique halo patterns including RGB color-changing options.

Limitations: Beam patterns are improved over cheapest options but still noticeably inferior to mid-range and premium lights. Real-world lumen output typically 20-30% below claims.

Best for: Budget-conscious buyers wanting slightly better quality than entry-level, halo lighting enthusiasts on a budget.

LED Headlight Comparison Chart

Brand/Model	Lumens (Low/High)	DOT Approved	Warranty	Price/Pair	Best For
JW Speaker 8700 J2	3,600/4,600	Yes	5 years	$600-700	Best overall performance
Truck-Lite 27270C	2,800/4,200	Yes	5 years	$450-550	Maximum durability
KC HiLiTES Gravity Pro	3,200/4,800	Yes	Lifetime	$400-500	Best value
Morimoto Super7	3,500/5,000	Yes	5 years	$400-500	Best mid-range beam pattern
Sunpie	2,800/4,200*	No	1 year	$80-120	Budget daily use
Xprite	3,000/4,500*	No	2 years	$100-150	Budget with halos

*Claimed specifications, actual output typically lower

DOT Compliance and Legality

Understanding headlight legality protects you from tickets and keeps roads safe for everyone.

What DOT Approval Means

DOT-approved headlights have been tested to federal motor vehicle safety standards (FMVSS 108) including:

• Minimum and maximum light intensity at specific angles
• Proper beam pattern with defined cutoff
• Glare limits to protect oncoming traffic
• Durability and moisture resistance

Look for a DOT stamp physically molded or printed on the headlight lens. This marking should include “DOT” and a manufacturer code.

The Problem with Fake DOT Markings

Many budget LED headlights display DOT markings without actual certification. These lights may:

• Blind oncoming traffic with improper beam patterns
• Have inconsistent light distribution with bright and dark spots
• Fail to meet intensity requirements for safe driving
• Result in failed vehicle inspections

How to verify: True DOT-compliant headlights from established manufacturers publish their certification information. JW Speaker, Truck-Lite, KC HiLiTES, and Morimoto all provide DOT compliance documentation for their products.

State-Specific Regulations

While DOT approval is a federal standard, individual states may have additional requirements:

• Some states mandate headlights pass annual inspection
• Color temperature restrictions (blue tints may be prohibited)
• Maximum brightness limits (rare but exist)
• Halo/DRL color restrictions (no blue or red in most states)

Our recommendation: Stick with DOT-approved headlights from established brands to avoid legal issues and ensure safe beam patterns.

Installation Guide for JK LED Headlights

Installing LED headlights on your JK is straightforward. Most owners complete the job in 30-60 minutes.

Tools Required

• Phillips head screwdriver or T15 Torx driver (depending on year)
• Flathead screwdriver (for prying trim clips)
• Clean microfiber cloth
• Electrical tape (if using adapters)

Basic Installation Steps

Step 1: Access the headlight Open the hood and locate the headlight retaining ring. On some years, you may need to remove the turn signal housing for better access.

Step 2: Remove the retaining ring Remove the screws holding the chrome retaining ring in place (typically 3-4 screws). Set the ring and screws aside.

Step 3: Remove the stock headlight Carefully pull the headlight assembly forward. It will still be connected by the H13 wiring harness.

Step 4: Disconnect the wiring Squeeze the connector tabs and disconnect the H13 plug from the stock headlight.

Step 5: Connect your LED headlight Most JK-specific LED headlights plug directly into the H13 connector. If your headlight has an H4 connector, install the H4-to-H13 adapter first.

Step 6: Install anti-flicker adapters (if needed) For 2014+ JKs or if you experience flickering, install the anti-flicker adapter between the vehicle harness and the headlight. Route excess wiring away from heat sources.

Step 7: Mount the new headlight Place the LED headlight in the housing and reinstall the retaining ring. Ensure the headlight is oriented correctly (most have a “TOP” marking).

Step 8: Test and adjust Turn on your headlights and verify proper operation of low beam, high beam, and any halo/DRL features. Park facing a wall to check beam pattern alignment.

Anti-Flicker Adapter Information

Why you might need them: The JK’s electrical system (particularly 2014+) uses a canbus monitoring system that checks headlight circuits for proper current draw. LED headlights draw less current than halogens, which the system may interpret as a burned-out bulb - triggering warning lights or causing flickering.

How they work: Anti-flicker adapters (load resistors or decoders) add electrical resistance to simulate the current draw of halogen bulbs, satisfying the canbus system.

Installation notes:

• Install adapters as close to the headlight as possible
• Secure adapters away from plastic components (they generate heat)
• Some LED headlights include integrated anti-flicker technology
• Premium brands like JW Speaker and Truck-Lite often don’t require adapters due to superior electronics

H13 vs. H4 Connector Guide

Connector	Description	JK Compatibility
H13	4-pin connector, JK factory standard	Direct plug-in
H4	3-pin international standard	Requires adapter

Most quality 7-inch LED headlights include the necessary adapters or offer JK-specific versions with H13 connectors. Check the product listing before purchase.

Halo and DRL Wiring

If your headlights include halo rings or DRLs, you’ll need additional wiring:

Basic DRL wiring: Connect the DRL wire to a switched 12V source (ignition-on power). Many owners tap the parking light circuit.

Turn signal integration: Some halos can function as turn signals. This requires connecting the halo to your turn signal wiring with appropriate resistors.

Detailed wiring information: See our complete JK Electrical Upgrades Guide for power distribution and wiring best practices.

Maintaining Your LED Headlights

Quality LED headlights require minimal maintenance but benefit from occasional attention.

Cleaning

• Clean lenses with automotive plastic cleaner (not glass cleaner on polycarbonate lenses)
• Remove bugs and debris promptly to prevent etching
• Apply plastic sealant annually to prevent UV yellowing

Inspection Points

• Check mounting screws for tightness annually
• Inspect wiring connections for corrosion
• Verify beam aim hasn’t shifted after suspension work
• Look for moisture intrusion (indicates seal failure)

Troubleshooting Common Issues

Problem	Likely Cause	Solution
Flickering	Canbus interference	Install anti-flicker adapter
Warning light on dash	Low current draw detected	Install load resistor
One headlight out	Failed LED driver	Contact manufacturer for warranty
Moisture inside lens	Seal failure	Warranty claim or reseal
Beam pattern shifted	Loose mounting	Retighten and re-aim

Frequently Asked Questions

Are LED headlights legal on a JK Wrangler?

Yes, LED headlights are legal for road use if they are DOT/SAE compliant. Look for headlights with proper DOT markings stamped on the lens. DOT-approved units have been tested for proper beam patterns that illuminate the road without blinding oncoming traffic. Premium brands like JW Speaker, Truck-Lite, KC HiLiTES, and Morimoto all offer DOT-certified options. Avoid cheap LED headlights without DOT certification as they may have poor beam patterns that are illegal and create safety hazards for other drivers.

Do I need anti-flicker adapters for JK LED headlights?

Some JK model years (particularly 2014 and newer) use a canbus electrical system that monitors headlight circuits for proper current draw. Since LED headlights draw less power than halogens, the system may interpret this as a burned-out bulb - triggering warning lights or causing flickering. Anti-flicker adapters (also called decoders or load resistors) solve this issue by simulating the electrical load of halogen bulbs. Many premium LED headlights include integrated electronics that eliminate this need, but budget options typically require adapters as a separate purchase.

What is the difference between H13 and H4 headlight connectors?

The JK Wrangler uses H13 connectors for its factory headlight wiring. H4 is a different connector type that’s the international standard for 7-inch headlights, common in older vehicles and international markets. Many aftermarket LED headlights come with H4 connectors since that’s the universal standard for the 7-inch form factor. This simply requires an inexpensive H4-to-H13 adapter for JK installation. Quality LED headlights designed specifically for Jeeps often include the correct H13 plug or bundle the adapter with the product.

How many lumens do I need for JK LED headlights?

For safe nighttime driving, look for LED headlights producing 3,000-4,000 lumens per headlight on low beam and 4,000-6,000 lumens on high beam. More lumens aren’t always better - beam pattern quality matters far more than raw output numbers. A well-designed 3,500-lumen headlight with proper optics will provide better real-world visibility than a cheap 10,000-lumen light with scattered, poorly-focused beam patterns. Premium and mid-range brands optimize both output and beam pattern; budget brands often sacrifice pattern quality for inflated lumen claims.

Can I install LED headlights on my JK myself?

Yes, JK LED headlight installation is one of the most straightforward upgrades you can do. The 7-inch round headlights are held in place by a chrome trim ring secured with 3-4 screws - basic hand tools are all you need. Simply remove the trim ring, unplug the old halogen headlight, plug in the new LED unit with any necessary adapters, and reinstall the trim ring. The entire process takes 30-60 minutes for both headlights. The only complication is routing anti-flicker adapters if required, or wiring halos if your headlights include that feature.

Making Your Decision

For Maximum Performance (JW Speaker 8700 J2)

Choose JW Speaker if you do significant night driving, want the absolute best beam pattern, and your budget allows. The $600-700 price seems high until you experience the difference. These headlights transform night driving safety and comfort.

For Best Value (KC HiLiTES Gravity Pro)

The KC HiLiTES Gravity Pro offers the best balance of performance and price. The lifetime warranty provides exceptional long-term value, and beam pattern quality approaches premium levels. If we had to pick one recommendation for most JK owners, this is it.

For Durability (Truck-Lite 27270C)

If you beat on your JK off-road and need lights that survive abuse, Truck-Lite’s commercial-grade construction delivers. Slightly lower output than competitors but built to outlast your vehicle.

For Budget Builds (Sunpie or Xprite)

If budget is the primary constraint and you do limited night driving, Sunpie or Xprite provide dramatic improvement over stock halogens at minimal cost. Accept that beam patterns aren’t perfect and plan to potentially upgrade later. Avoid driving at night on busy roads where glare may affect other drivers.

Related Articles

• JK Electrical Upgrades Guide - Complete guide to JK electrical system upgrades and wiring best practices
• Best Light Bars for JK Wrangler - Auxiliary lighting options to complement your headlight upgrade
• JK Dual Battery Setup Guide - Power management for electrical accessories
• JK Winch Installation Guide - Another popular electrical upgrade

---

Upgrading your JK’s headlights to quality LEDs is one of the most satisfying modifications you can make. The improvement in nighttime visibility is immediate and dramatic. Whether you choose premium JW Speaker units or budget-friendly alternatives, you’ll wonder why you drove with dim halogens for so long. Just remember: invest in DOT-approved headlights with proper beam patterns to keep yourself legal and other drivers safe.
